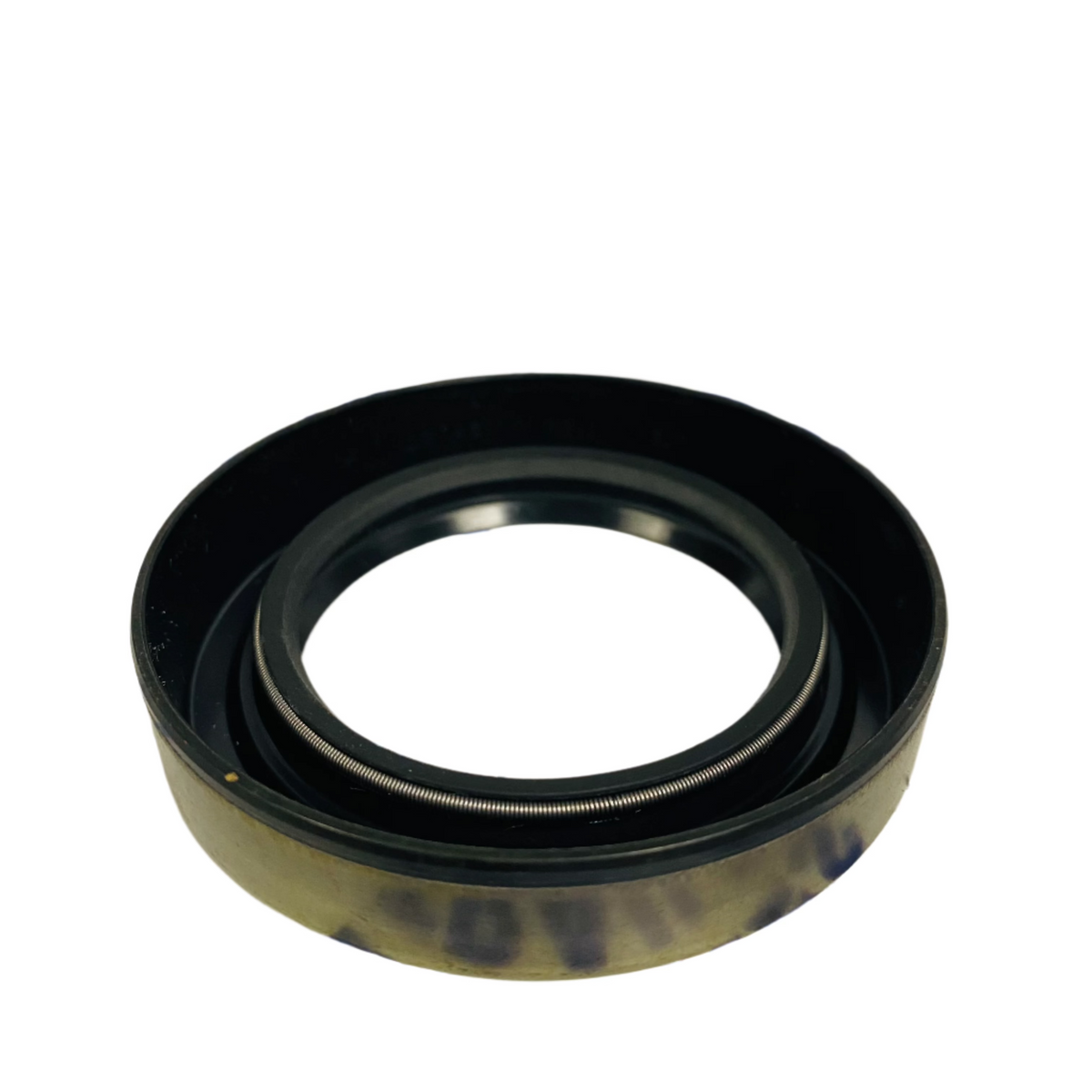

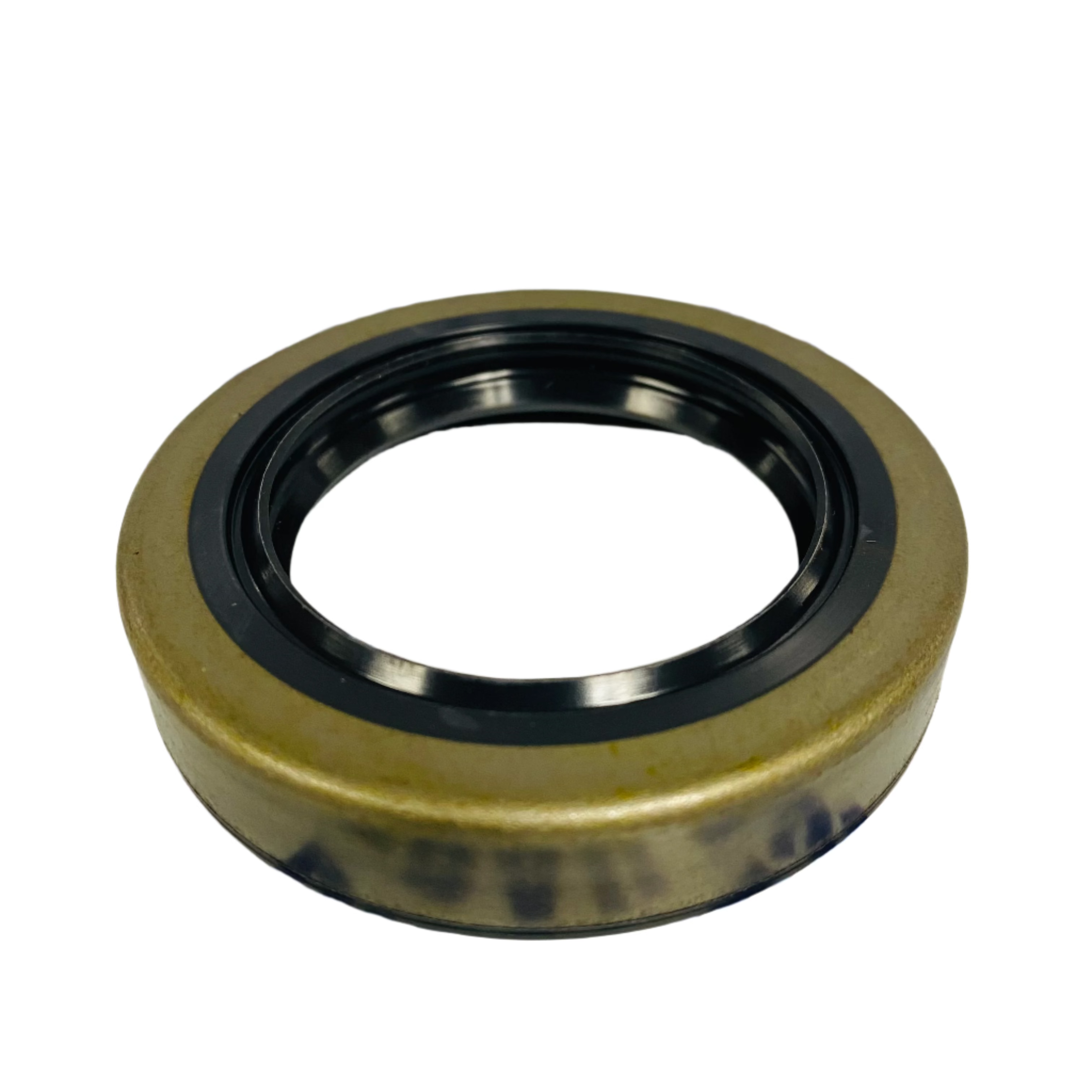

Dexter Vault Wheel Seal 010-172-00 – 2.56" x 1.68" for 3.7K Trailer Axles (2004–Present)

In stock
SKU: 010-172-00
$6.00

Dexter Vault Wheel Seal – 3.7K Axle, 2.56" x 1.68" (010-172-00)

🛠️ OEM Vault-Style Seal for Dexter/UFP Axles (2004–Current):
This genuine Dexter Vault wheel seal is designed for 3.7K trailer axles using the Vault Hybrid Lubrication System. Commonly used on axles manufactured from 2004 to present.

Ideal for use with either Dexter Hybrid Oil or standard marine wheel bearing grease.

⚠️ Fitment Note:

  • Fits most Dexter/UFP 3,700 lb torsion or spring axles from 2004 to present.

  • Not compatible with pre-2004 hub designs (see 010-180-00 Seal for older fitment).

📏 Specifications:

  • Outside Diameter: 2.56"

  • Inside Diameter: 1.68"

  • Designed for use with Dexter Hybrid Oil 088-013-00 or compatible grease

  • Alternate cross reference: AB16255

🔩 Works With:

  • Dexter/UFP Vault Caps & Hubs

  • Legacy UFP Numbers: 07028, 32373

  • Dexter References: 010-168-00, K71-802-00

  • Other Refs: 168255TB, 250-500856, AB16255

🧰 Installation Tip:
Use Permatex Red RTV Gasket Maker when installing wheel seals for a reliable, leak-proof seal.

📄 Click here for Vault Seal Installation Instructions (PDF)



Customer Reviews

Based on 6 reviews
83%
(5)
0%
(0)
0%
(0)
0%
(0)
17%
(1)
B
Brian Fallon
Wrong size

I needed seals for a 2003 Dexter vault hub i was sent seals for a 2004 and newer. I returned them I am still waiting for the return . I have ordered seals for the 2003 dexter vault and have not recieved them

Brian - I am sorry you are not satisfied with our products/services but both the title and description of the part you ordered clearly state '2004-Present' meaning this seal, the one you ordered, fits hubs that are 2004 and newer. I am a little unclear where we went wrong and how we let you down. Your replacement seals that you mentioned you still have not received were shipped on the promised day per your order and you have been provided tracking information via email. Can you please provide tracking information regarding the return you mentioned? We have not received any returns from you yet. Please do not hesitate to reach out to us with any questions.

L
Leslie Dowden

Dexter Vault Wheel Seal [****] – 2.56" x 1.68" for 3.7K Trailer Axles (2004–Present)

J
Jonathan Smith
Trailer parts

Parts were shipped & recived quickly & were the correct parts just as described, Thanks

t
tim stratton
Alumicraft trailer.

I did bearing grease ten years ago. Had original tires on the trailer from 2008 , so when I got new tires, decided to do the grease again. It still looked serviceable. I called and got excellent advice. Probably the last time I mess with it.
One thing unusual about my hubs is that there is no hole in the spindle for the grease zero , you can’t fill the hub with grease after both bearings are installed.

R
Robert Cieslewicz
Perfect fit

Exactly as described, no issues with installing.
