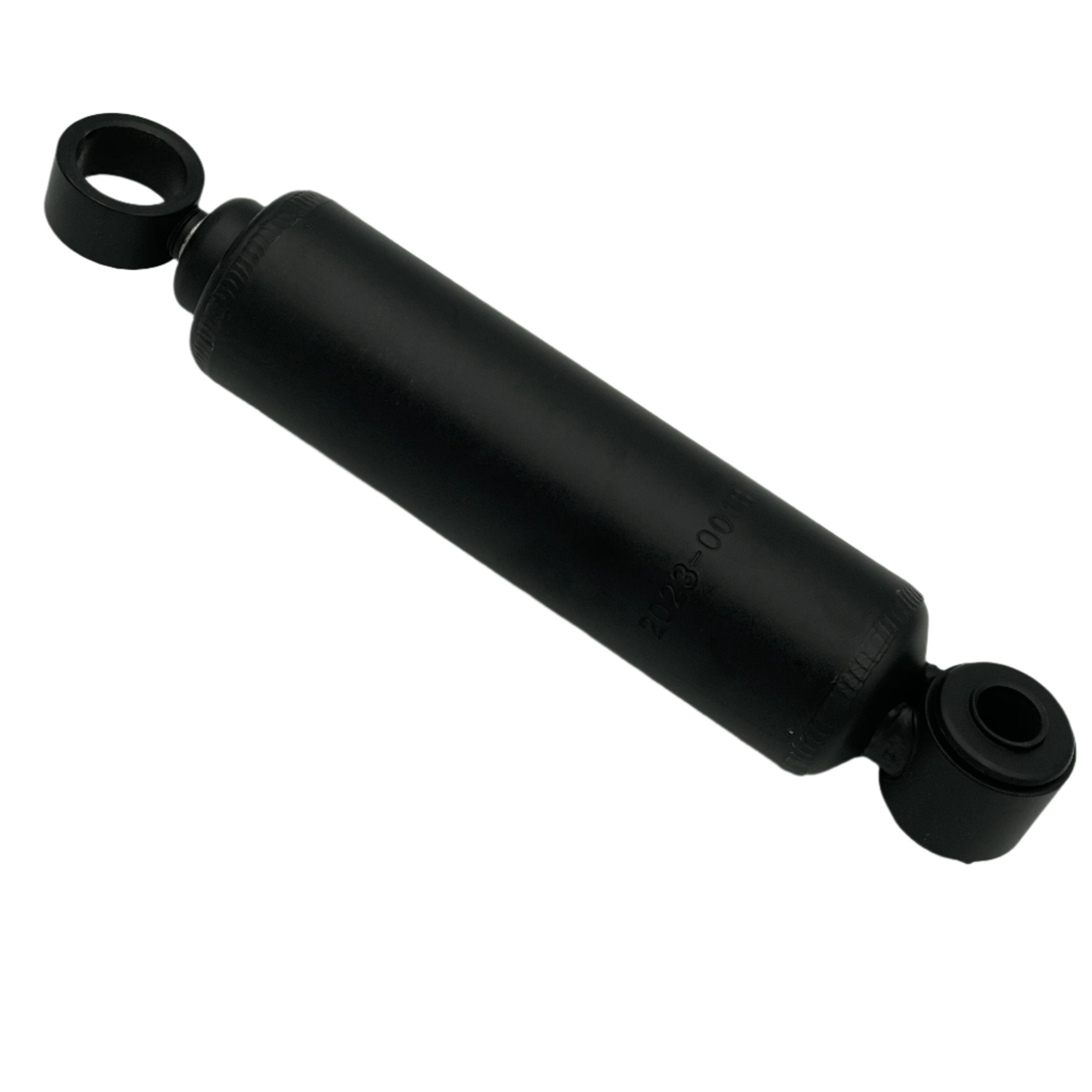

Dexter 053-010-00 Shock Absorber – Titan Model 20 Surge Brake Actuator, Replaces 7784

Smooth the Ride on Your Heavy-Duty Titan/Dexter Surge Actuator
This OEM replacement shock absorber (Dexter 053-010-00 / Titan 7784 / 778400) restores damping performance in heavy-duty surge brake actuators like the Titan / Dico Model 20 and Dexter DX20EX. Controls both the compression and rebound of your hydraulic coupler to prevent harsh jerking during starts and stops.

⚠️ Fitment Note:
Fits Titan Model 20, Dexter DX20EX, and other large-frame surge actuators using this style of damper.
✅ Typically, two shocks are required per actuator.

📏 Specifications:

• Stroke: ~4.00"

• Collapsed Length (Eye-to-Eye): 8.25"

• Extended Length (Eye-to-Eye): 12.25"

• Large Eyelet: 0.897" ID x 5/8" Wide

• Small Eyelet: 0.50" ID x 1-3/8" Wide

🔧 Replaces Titan Part Numbers:

• 7784

• 778400
