Demco Reverse Lockout Solenoid – 05561 Bypass Type for Surge Brake Actuators, Replaces UFP 054-101-00

Demco Reverse Lockout Solenoid – Bypass Type – 05561 for Surge Brake Actuators

Bypass-Style Replacement for Surge Brake Couplers

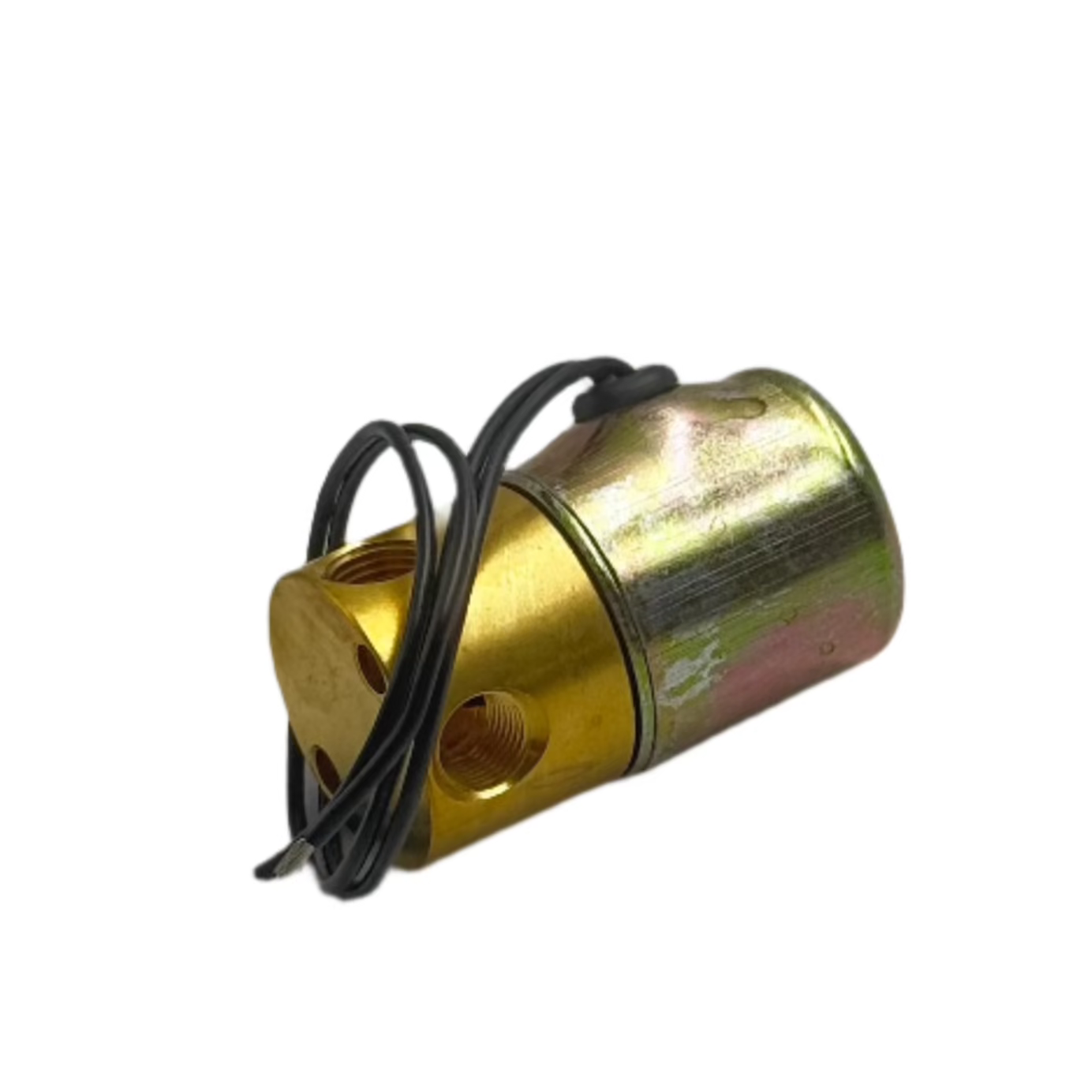

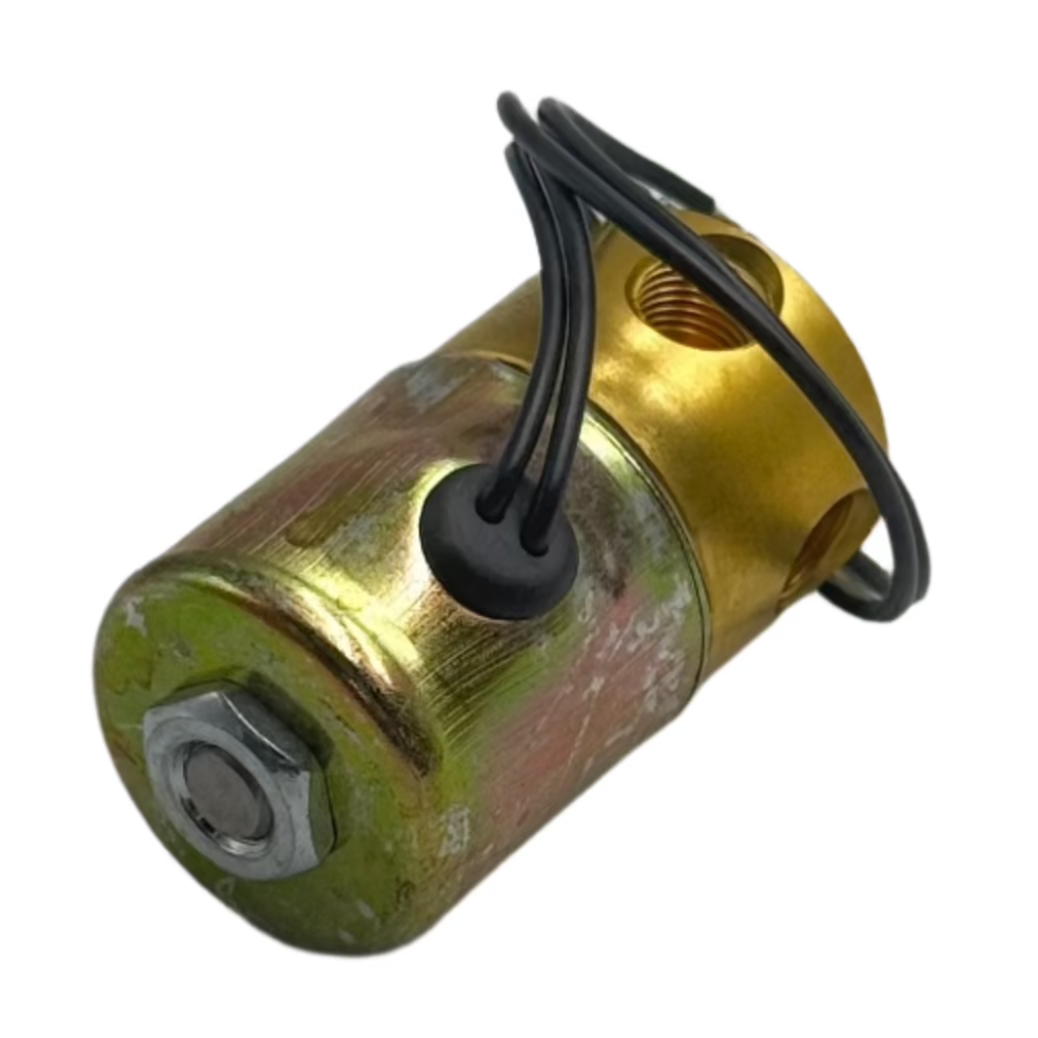

This Demco 05561 reverse lockout solenoid is a high-quality electric bypass valve designed for use with trailer surge brake actuators. It prevents hydraulic pressure from reaching the brakes when the tow vehicle is in reverse.

A reliable replacement option for many discontinued or hard-to-find solenoids, including the Dexter/UFP 054-101-00.

⚠️ Fitment Note:

• Works with most surge couplers that use bypass-style reverse lockout valves

• Direct port-size match for the obsolete Dexter/UFP 054-101-00

• Fittings are not included — must be reused from your old unit or replaced

• Use with a 12V reverse wire from your tow vehicle

• 🔌 Wiring Note: This is a two-wire solenoid and will replace older single-wire solenoids. Simply connect one wire to the reverse circuit, and ground the other — either wire can be used for either purpose.

🔧 What’s Included:

• 1x Genuine Demco Reverse Lockout Solenoid Valve (Part # 05561)

📏 Specifications:

• Type: Bypass-style solenoid valve

• Operating Voltage: 12V

• Thread Ports: Same thread size as Dexter/UFP 054-101-00

• Construction: Weather-sealed, corrosion-resistant

🧰 Works With:

• Most Demco and UFP/Dexter surge actuators using a bypass / fluid return style solenoid


🧰 Additional Info:

• This solenoid is also included in the Demco Reverse Lockout Solenoid Kit 5753, which includes additional fittings and components for Demco applications
