Dexter 10-inch Manual-Adjust Electric Brake Parts
10 × 2¼ inches · 3,500-lb axle application. Check side and production date.
Shop the system
View parts diagram ↓
Bearings & Seals
D35/#10 hub-group references. Match bearing numbers and seal dimensions to your spindle and hub.
-
010-019-00010-019-00 Genuine Dexter Wheel Seal
-
031-033-02L68149 (031-033-02) Bearing
-
031-033-01L68111 (031-033-01) Race
-
031-031-01L44610 (031-031-01) Race
-
031-031-02L44649 (031-031-02) Bearing
Hubs
Plain idler hub for a non-braking wheel position. This is not a replacement for a brake hub/drum. Match the spindle and bolt pattern; the option shown is 5 on 5½ inches.
Hub/Drums
D35/#10 hub/drums for 10 × 2¼-inch brakes. Match wheel bolt pattern, stud size, spindle, bearings and seal. These options are not interchangeable.
-
-
-
-
LMT8-247-128-247-12 Hub/Drum
-
Dexter catalog / Assembly reference

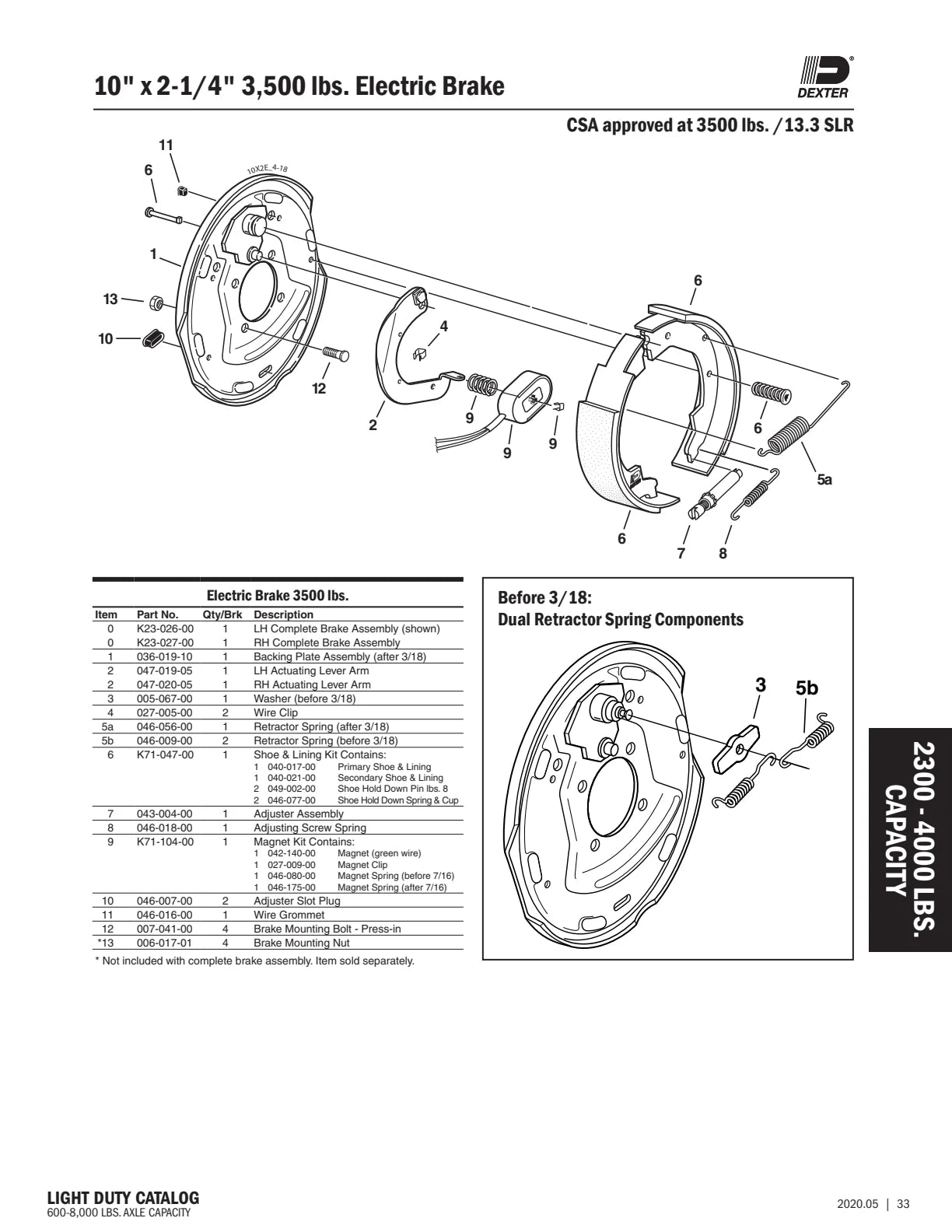

10″ × 2¼″ Electric Brake Parts Diagram
Use the numbered drawing to identify your part, then open a matching catalog item below. The source includes production-date differences.
Brake assembly parts
0 — Left / right complete assembly
6 — Shoe & lining kit
9 — Magnet kit
Source: Dexter Light Duty Catalog, May 2020, page 33. Selected replacement parts are linked here. Consult the catalog for other callouts.
Make sure it fits your trailer
Match the brake size, axle rating, left/right side and adjustment type. This reference is for the manual-adjust system; Nev-R-Adjust, hydraulic and parking-brake versions have separate diagrams.
Check the source drawing’s date notes when replacing internal parts. A shared part can belong to more than one system.
Get help matching your parts →
