Brake system / Parts & support
Dexter 7" x 1-3/4" 2,500 lbs. Hydraulic Brake Parts
Match your exact assembly, size, rating, side and production date. Shared catalog parts do not make entire systems interchangeable.
Shop by component
Other brake parts
-
007-041-00Backing Plate Mounting Stud 007-041-00
-
046-007-00Adjuster Slot Plug Genuine Dexter 046-007-00
Bearings & Seals
Options listed in the catalog references below. Match the exact hub, spindle, bearing/seal numbers, lubrication type and bolt pattern; these options are not interchangeable.
-
010-009-00010-009-00 Genuine Dexter Wheel Seal
-
031-031-02L44649 (031-031-02) Bearing
-
031-031-01L44610 (031-031-01) Race
Hubs
Idler hubs are for non-braking wheel positions. Match spindle and wheel bolt pattern; these do not replace brake hub/drums.
Parts diagrams & catalog references
Original Dexter Light Duty Catalog, May 2020. Check the drawing, production-date notes and hub configuration. Only exact catalog SKU matches available in our store are linked above.

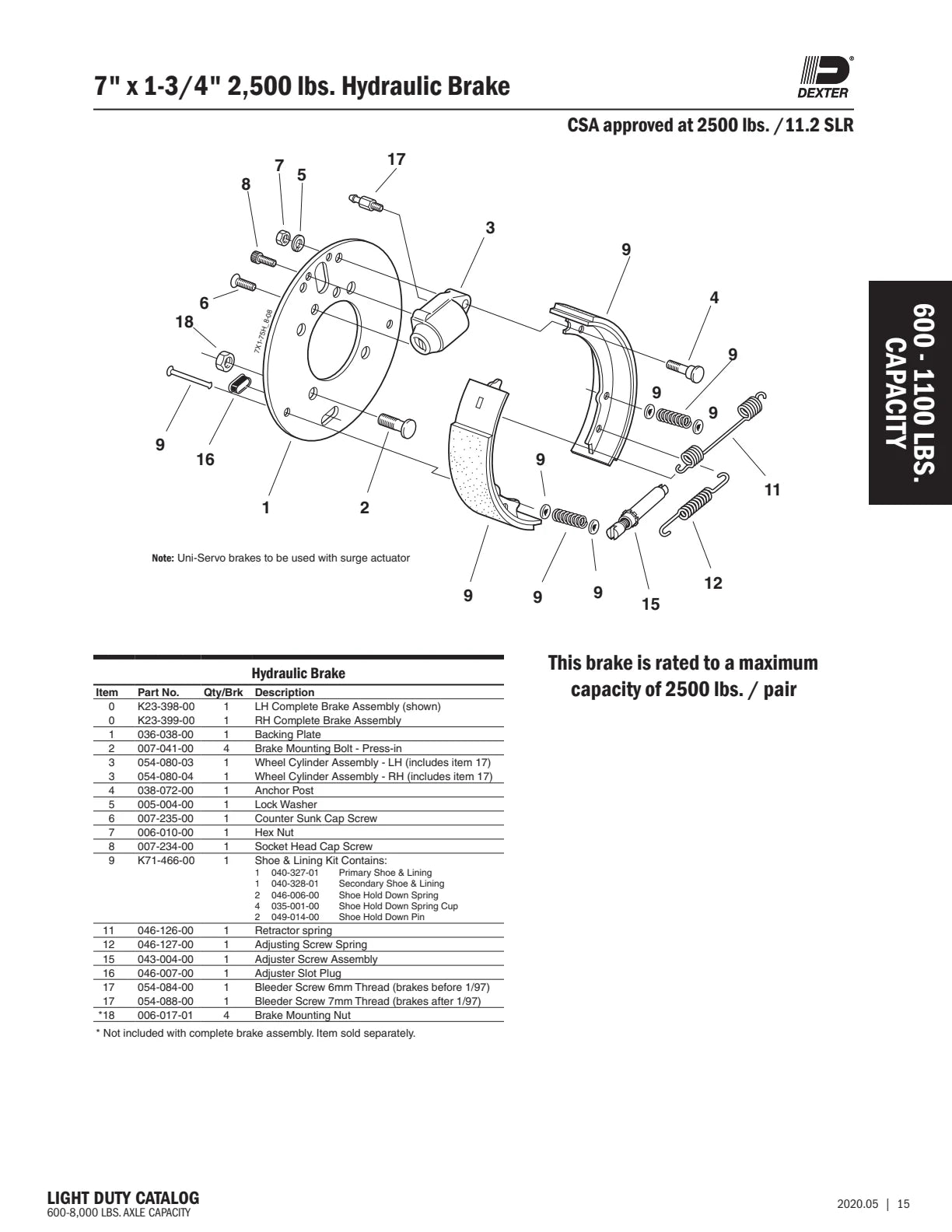

Catalog page 15 — brake assembly reference

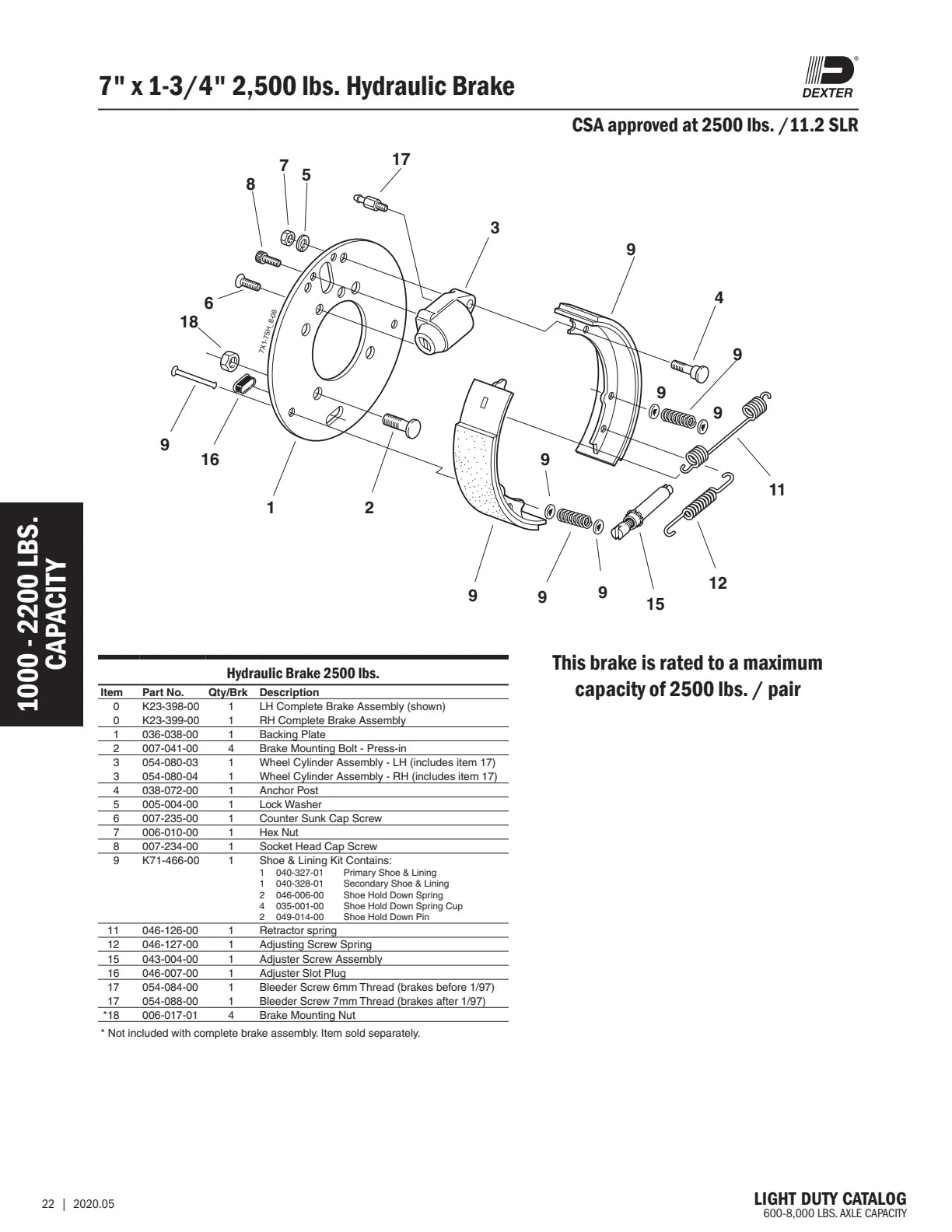

Catalog page 22
Catalog page 12
Catalog page 19
Make sure it fits your trailer
Match your brake size, axle rating, adjustment type, left/right side and production date. For hubs and bearings, also match spindle dimensions, lubrication type and wheel bolt pattern.
Parts listed together may represent different configurations or production dates. Check the catalog notes and your existing component before ordering.
