Brake system / Parts & support
Dexter 10" x 2-1/4" 4,400 lbs. Electric Brake Manual Adjust Parts
Match your exact assembly, size, rating, side and production date. Shared catalog parts do not make entire systems interchangeable.
Shop by component
Brake assemblies
Brake shoes
Magnets
Other brake parts
-
046-018-00Adjuster Spring 046-018-00
-
046-007-00Adjuster Slot Plug Genuine Dexter 046-007-00
-
046-016-00046-016-00 Dexter Wire Grommet
Bearings & Seals
Options listed in the catalog references below. Match the exact hub, spindle, bearing/seal numbers, lubrication type and bolt pattern; these options are not interchangeable.
-
010-019-00010-019-00 Genuine Dexter Wheel Seal
-
031-033-02L68149 (031-033-02) Bearing
-
031-033-01L68111 (031-033-01) Race
-
031-031-01L44610 (031-031-01) Race
-
031-031-02L44649 (031-031-02) Bearing
-
031-032-01LM67010 (031-032-01) Race
-
031-032-02LM67048 (031-032-02) Bearing
Hub/Drums
Options listed in the catalog references below. Match the exact hub, spindle, bearing/seal numbers, lubrication type and bolt pattern; these options are not interchangeable.
Parts diagrams & catalog references
Original Dexter Light Duty Catalog, May 2020. Check the drawing, production-date notes and hub configuration. Only exact catalog SKU matches available in our store are linked above.

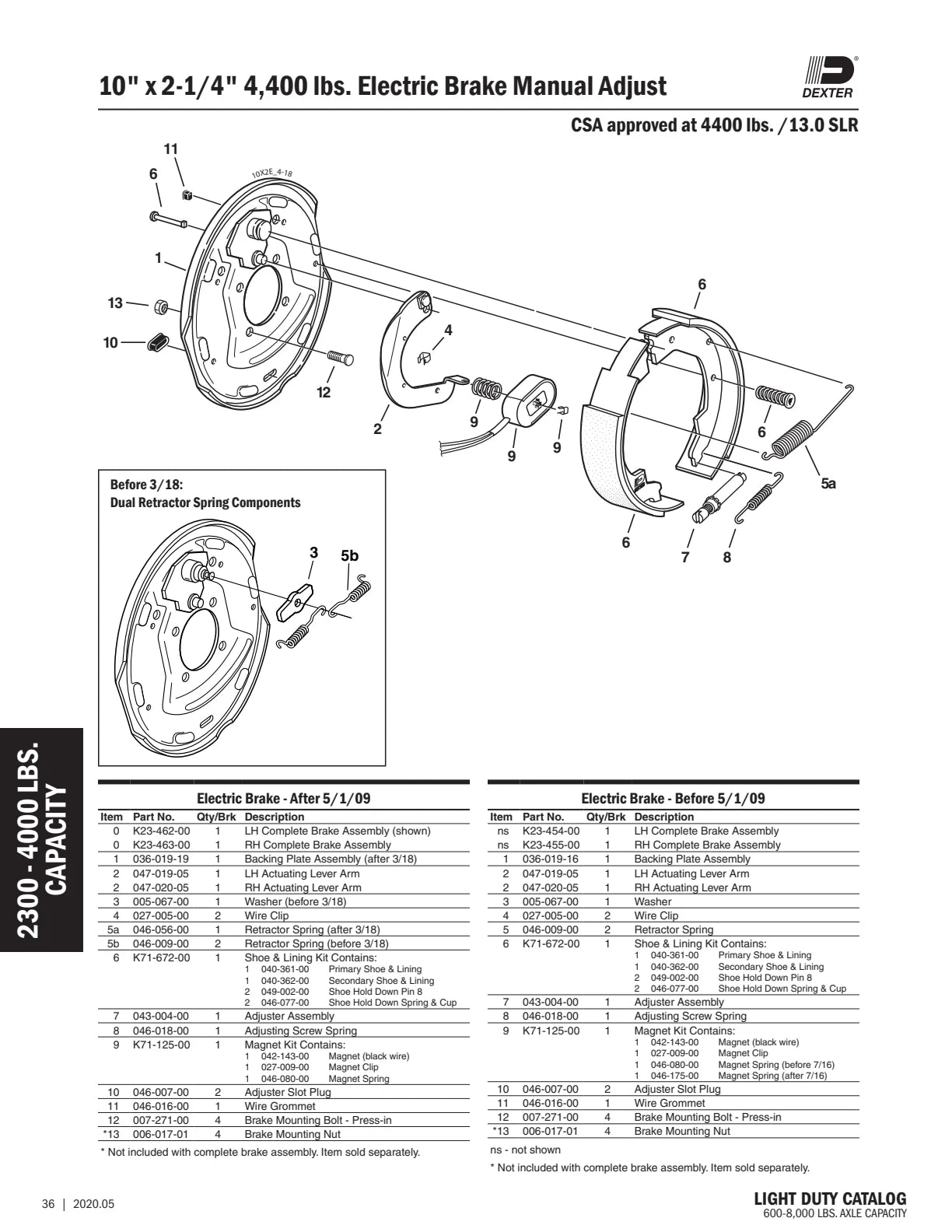

Catalog page 36 — brake assembly reference

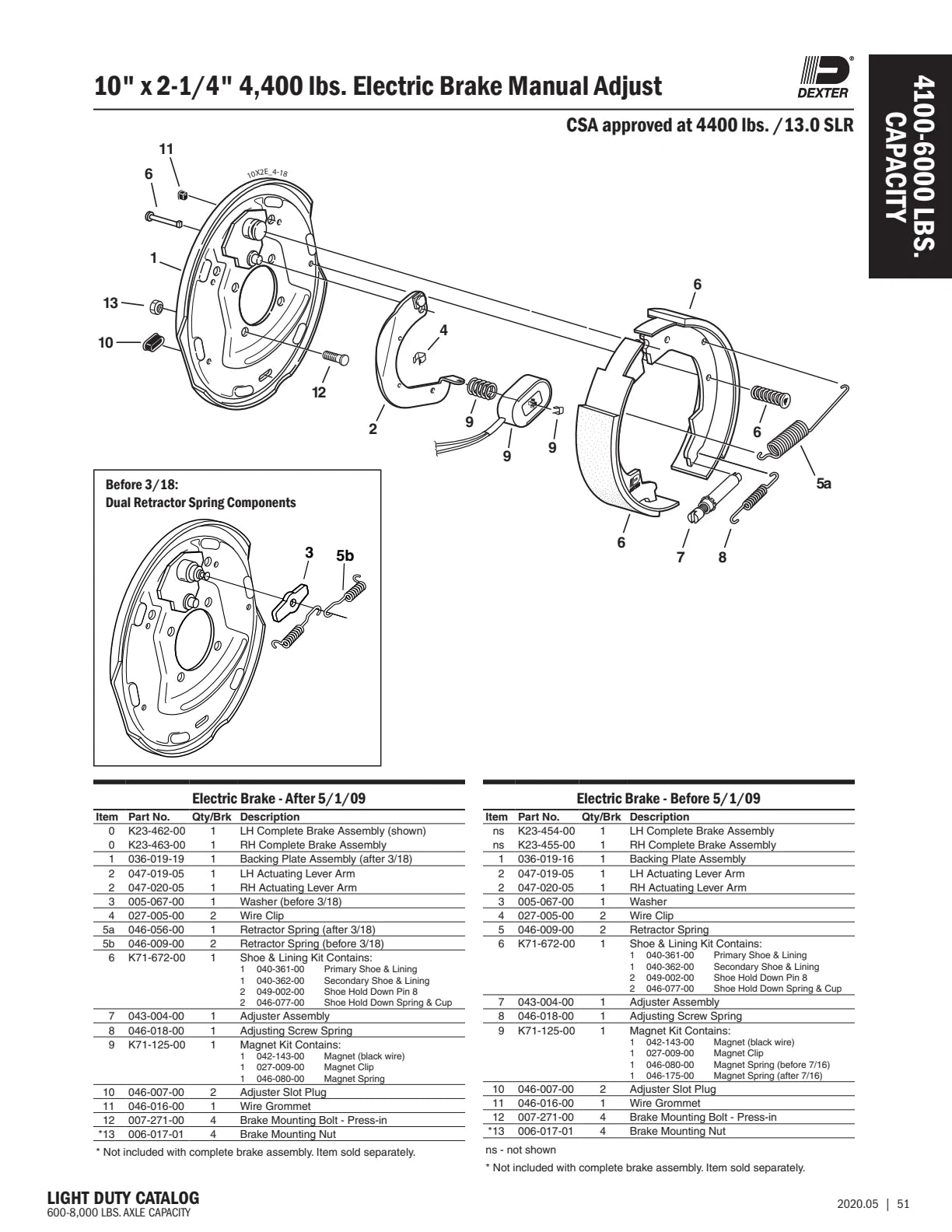

Catalog page 51

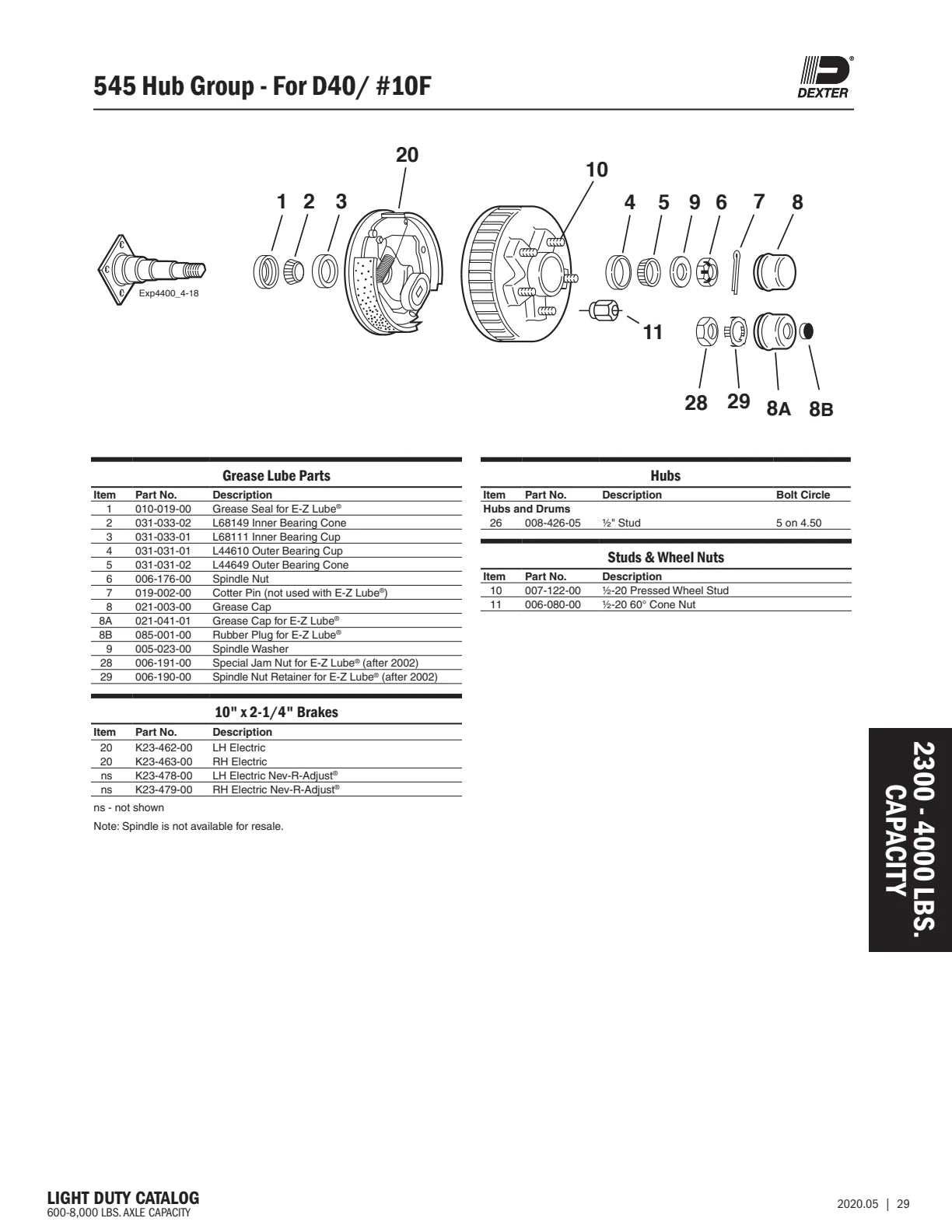

Catalog page 29

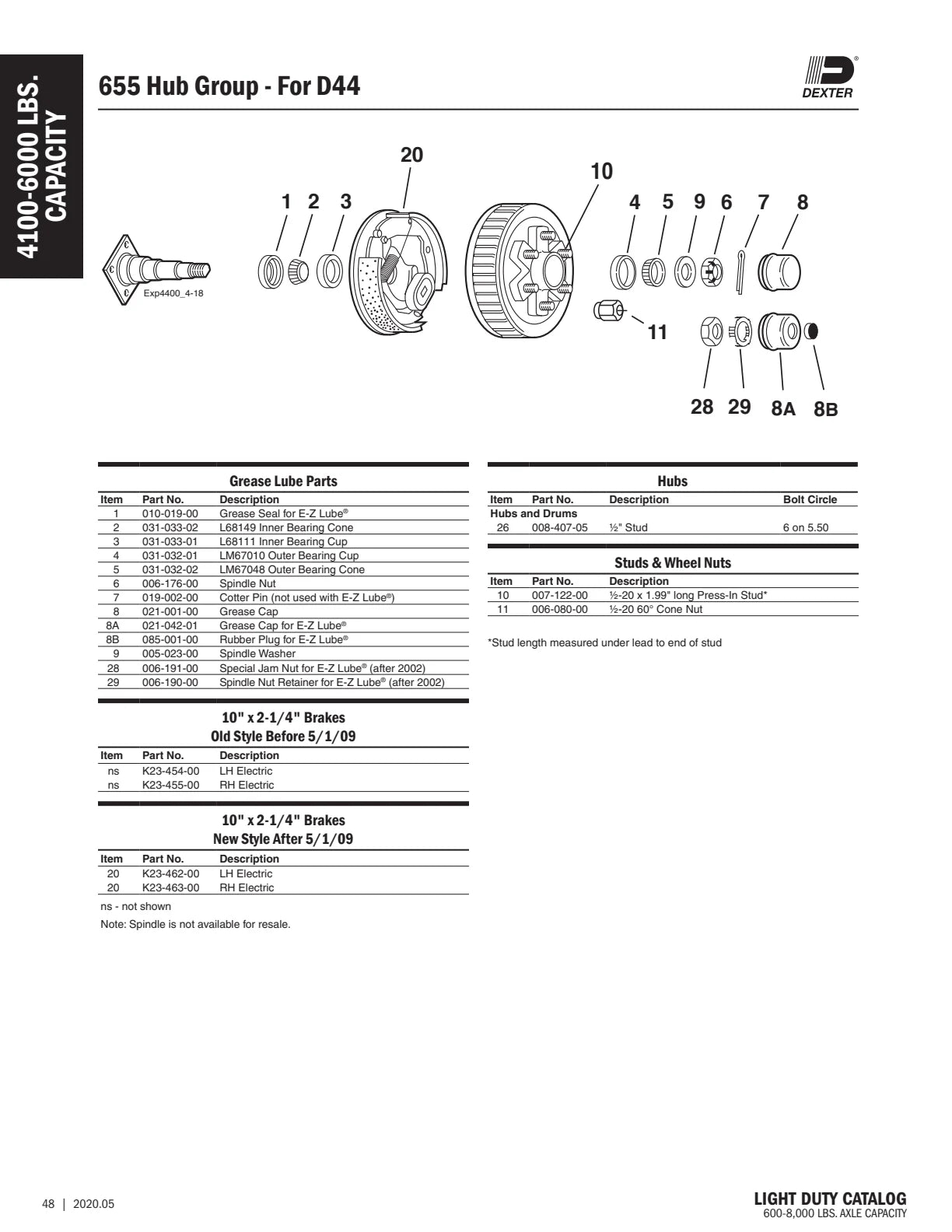

Catalog page 48
Make sure it fits your trailer
Match your brake size, axle rating, adjustment type, left/right side and production date. For hubs and bearings, also match spindle dimensions, lubrication type and wheel bolt pattern.
Parts listed together may represent different configurations or production dates. Check the catalog notes and your existing component before ordering.
