Brake system / Parts & support
Dexter 10" x 2-1/4" 3,500 lbs. Nev-R-Adjust® Electric Brake Parts
Match your exact assembly, size, rating, side and production date. Shared catalog parts do not make entire systems interchangeable.
Shop by component
Magnets
Other brake parts
-
046-007-00Adjuster Slot Plug Genuine Dexter 046-007-00
-
046-016-00046-016-00 Dexter Wire Grommet
-
007-041-00Backing Plate Mounting Stud 007-041-00
Bearings & Seals
Options listed in the catalog references below. Match the exact hub, spindle, bearing/seal numbers, lubrication type and bolt pattern; these options are not interchangeable.
-
010-019-00010-019-00 Genuine Dexter Wheel Seal
-
031-033-02L68149 (031-033-02) Bearing
-
031-033-01L68111 (031-033-01) Race
-
031-031-01L44610 (031-031-01) Race
-
031-031-02L44649 (031-031-02) Bearing
Hubs
Idler hubs are for non-braking wheel positions. Match spindle and wheel bolt pattern; these do not replace brake hub/drums.
Hub/Drums
Options listed in the catalog references below. Match the exact hub, spindle, bearing/seal numbers, lubrication type and bolt pattern; these options are not interchangeable.
-
-
-
-
LMT8-247-128-247-12 Hub/Drum
-
Parts diagrams & catalog references
Original Dexter Light Duty Catalog, May 2020. Check the drawing, production-date notes and hub configuration. Only exact catalog SKU matches available in our store are linked above.

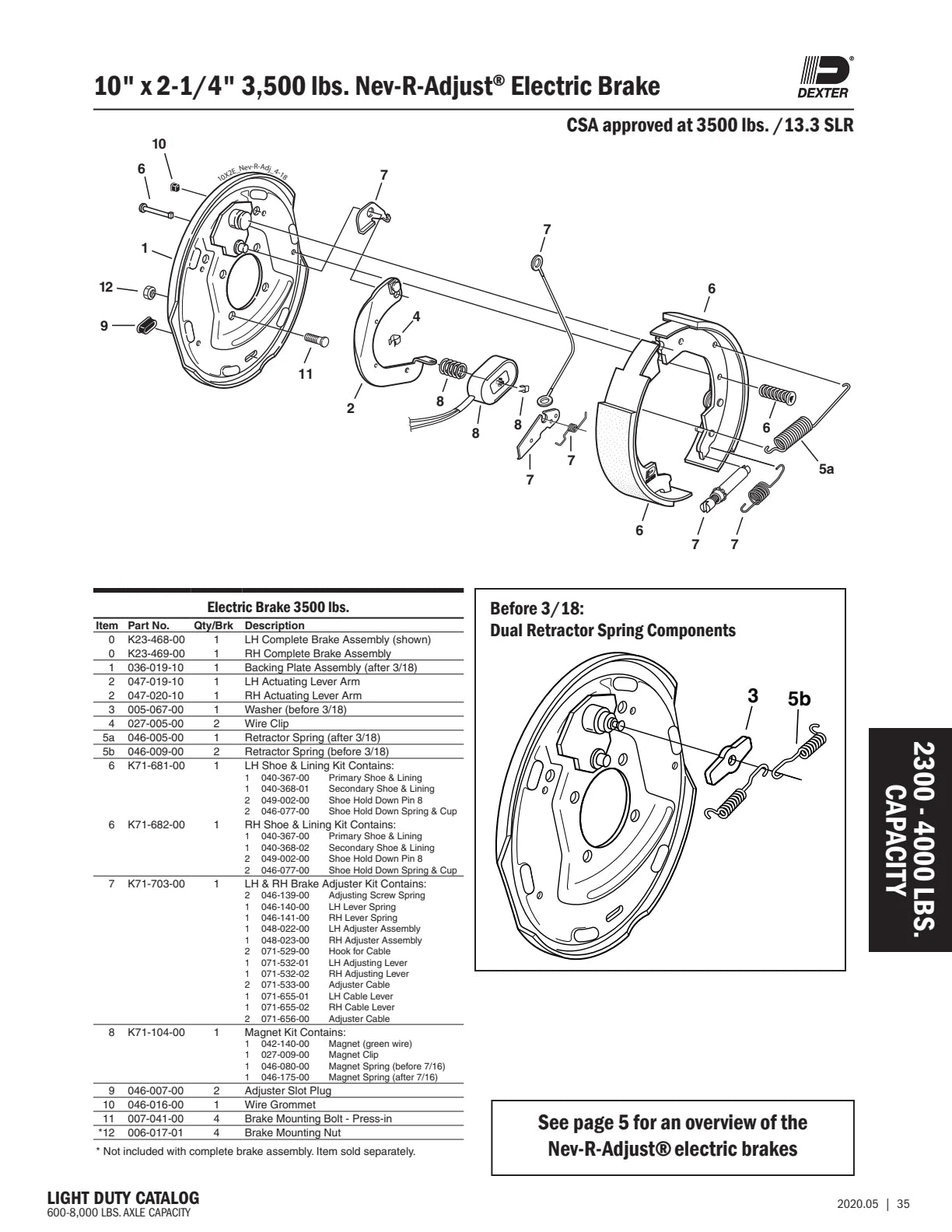

Catalog page 35 — brake assembly reference
Catalog page 28
Catalog page 30
Make sure it fits your trailer
Match your brake size, axle rating, adjustment type, left/right side and production date. For hubs and bearings, also match spindle dimensions, lubrication type and wheel bolt pattern.
Parts listed together may represent different configurations or production dates. Check the catalog notes and your existing component before ordering.
